Structural Glazing Systems
Curtain Wall
Systems
Engineered for modern architecture. High-performance stick-built and unitized glazing solutions for commercial towers, institutional buildings, and landmark structures across Toronto and the GTA.

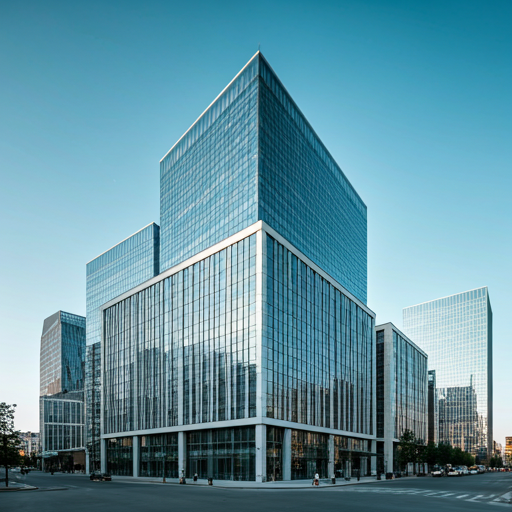

42-Story Tower
Financial District, Toronto
Unitized curtain wall with triple-pane Low-E glazing
37+
Years of Excellence
200+
High-Rise Projects
50K+
Panels Fabricated
100%
Engineer Stamped
System Types
Two Approaches,
Infinite Possibilities
Whether your project demands the flexibility of stick-built assembly or the speed of pre-fabricated unitized panels, our curtain wall systems deliver uncompromising performance and aesthetics.
Stick-Built Curtain Wall
The traditional and most versatile curtain wall system. Aluminum mullions and transoms are assembled on-site, with glazing infill installed progressively. Ideal for complex geometries, phased construction, and projects where crane access is limited.
Mullion Depth
2.5″ to 8″
Glazing Infill
1″ to 2″ IGU
Wind Load
Up to 200 psf
Thermal Break
Polyamide 66
Maximum design flexibility for irregular facades
Lower shipping costs — components are knocked down
Easier to accommodate field adjustments
Unitized Curtain Wall
Pre-fabricated interlocking panels manufactured in our controlled facility and craned into place on-site. Dramatically reduces installation time, improves quality control, and enables rapid enclosure of high-rise structures.
Panel Sizes
Up to 5′ x 12′
Factory Glazed
100% Pre-Glazed
Install Rate
50+ Panels/Day
Interstory Movement
±1.5″ Vertical
Superior quality control in factory conditions
Rapid installation — building enclosed in weeks
Reduced on-site labor and weather dependency
Hybrid & Custom Solutions
Complex projects often demand a tailored approach. We engineer hybrid systems combining stick-built and unitized methodologies, structural silicone glazing, point-supported glass, and custom extrusions for architectural landmarks.
SSG Options
2-Sided & 4-Sided
Point Support
Spider Fittings
Custom Extrusions
In-House Die Shop
PE Stamped
All Drawings
Seamless glass facades with minimal visible framing
Custom extrusion dies designed and machined in-house
Full structural engineering and PE stamping included
Technical Data
Performance Specifications
Every curtain wall system is engineered to exceed Ontario Building Code requirements and meet the stringent performance standards of modern commercial construction.
Air Infiltration
Tested to ASTM E283 standards with maximum air leakage of 0.06 cfm/sf at 6.24 psf pressure differential.
ASTM E283 Compliant
Water Penetration
Static and dynamic water testing per ASTM E331 and E547. No uncontrolled water penetration at 15 psf.
ASTM E331 / E547
Structural Performance
Designed to withstand wind loads up to 200 psf and inter-story drift of ±1.5 inches vertical movement.
ASTM E330 Compliant
Thermal Performance
Thermally broken profiles with polyamide strips. U-factors as low as 0.25 BTU/hr·ft²·°F with triple IGU.
NFRC Certified
Fire Safety
Perimeter fire containment systems meeting CAN/ULC-S101. Spandrel insulation and fire-stopping integration.
CAN/ULC-S101
Acoustic Control
Laminated glass with acoustic interlayers achieving STC ratings up to 50 for urban high-rise applications.
ASTM E90 / E413
Glazing Options
Glass Engineered
for Every Climate
Our curtain wall systems accommodate the full spectrum of glazing options — from high-performance Low-E insulated units to decorative spandrel panels and structural silicone glazing.
Solar Control Low-E
Double and triple silver coatings reducing SHGC to 0.25 while maintaining high visible light transmission.
Laminated Safety Glass
SGP and PVB interlayers for hurricane resistance, security, and post-breakage retention.
Spandrel & Shadow Box
Ceramic frit, opacified, and back-painted spandrel options with thermal insulation.
Electrochromic Smart Glass
Tint-on-demand glazing for dynamic solar control and LEED optimization.
Portfolio
Featured Curtain Wall Projects
Stick-Built System
Medical Research Centre
8-story stick-built system with fritted glass and custom aluminum sunscreens.
Hybrid System
University Innovation Hub
Mixed stick-built and point-supported glass atrium with structural silicone glazing.
Custom Extrusion
Waterfront Hotel & Residences
Curved unitized panels with custom marine-grade anodized finish.
SSG System
Corporate Headquarters
Four-sided structural silicone glazing with flush glass-to-glass corners.
Unitized System
Financial District Tower
42-story unitized curtain wall with triple-pane Low-E glazing and integrated sunshades.
FAQ
Curtain Wall Questions
What is the difference between stick-built and unitized curtain wall?
Stick-built curtain wall is assembled piece-by-piece on-site — mullions and transoms are installed first, then glazing is fitted into the frame. It offers maximum design flexibility and is ideal for complex geometries. Unitized curtain wall consists of pre-fabricated panels manufactured in a factory, then craned into place and interlocked on-site. Unitized systems install 3-4x faster, offer superior quality control, and reduce weather dependency — but require earlier design finalization and crane access.
What wind loads can your curtain wall systems withstand?
Our standard curtain wall systems are engineered for wind loads up to 200 psf (pounds per square foot), equivalent to approximately 280 km/h wind speeds. For high-rise towers in downtown Toronto and waterfront locations exposed to higher wind pressures, we engineer reinforced mullion sections and anchorage systems. All designs are reviewed and stamped by licensed professional engineers in Ontario, with structural calculations provided for permit submission.
Do you provide shop drawings and engineering stamps?
Yes — comprehensive shop drawings, fabrication drawings, and structural calculations are included with every curtain wall project. Our in-house engineering team produces 3D modeled drawings showing every mullion, transom, anchor, and gasket detail. All structural calculations are reviewed and stamped by a licensed Professional Engineer (P.Eng) registered in Ontario. We also provide thermal modeling, condensation analysis, and acoustic performance reports as required.
What glazing options work with your curtain wall systems?
Our systems accommodate virtually all glazing types: single, double, and triple insulated glass units (IGU) from 1″ to 2″ overall thickness; laminated safety glass with PVB or SGP interlayers; Low-E coated glass for solar control; ceramic frit and opacified spandrel glass; fire-rated glass for rated assemblies; and even electrochromic smart glass. We work with major glass suppliers including Guardian, Pilkington, and Vitro to specify the optimal glazing package for your performance requirements.
What is your typical lead time for curtain wall projects?
Lead times vary by project complexity and system type. Stick-built systems typically require 8-12 weeks from approved shop drawings to first delivery. Unitized systems generally need 12-16 weeks due to the factory assembly process. Custom extrusion dies add 4-6 weeks for die design and approval. We recommend engaging our team during the design development phase to align fabrication schedules with construction milestones. Rush programs are available for time-sensitive projects.
Start Your Curtain Wall Project
From concept drawings to final installation support, our team delivers curtain wall systems that define skylines. Let’s engineer your next landmark.
